Inspection Stamps
FACTORY INSPECTION STAMPERS +
Made to EXACT original designs
Please note: I am personally making these items myself - great care is spent to ensure exact detail.
Scroll down to see all our stamp applications
Air Conditioning OK Final Factory Test Stamps
$20 each

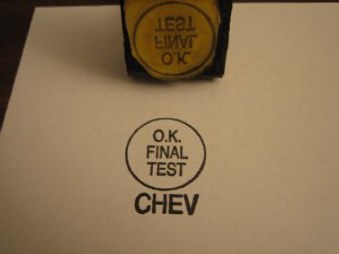

CHEVROLET - CHEV OK A/C Stamp.
PONTIAC - PONT OK A/C Stamp.
CADILLAC - CAD OK A/C Stamp.
OLDSMOBILE - OLDS OK A/C Stamp.
BUICK - BUICK OK A/C Stamp.

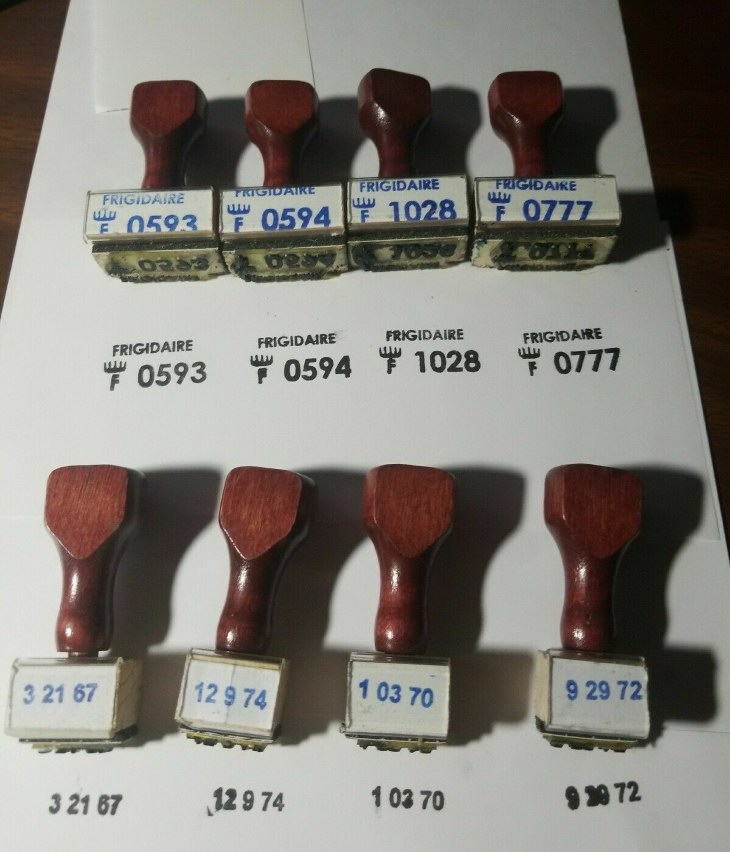

Air Conditioning POA Valve Logo stamps with part number.
EXACT Duplication of the POA Stamping
I make these myself to exact font duplication of the originals.
**Valves are not included
$22 each
Frigidaire POA Valve #0593 ink Stamp for Type "B"
Frigidaire POA Valve #0667 ink Stamp for Type "B" - Very Early
Frigidaire POA Valve #0594 ink Stamp for Type "A" - Early
Frigidaire POA Valve #0777 ink Stamp for Type "A" - Late
Frigidaire POA Valve #0700 ink Stamp for Late Type "C" - Early
Frigidaire POA Valve #1028 ink Stamp for Type "C" - Late
Air Conditioning POA Valve Date Code stamps.
Frigidaire POA Valve ink date Stamp A/C -- 3 21 67
Frigidaire POA Valve ink date Stamp A/C -- 8 20 68
Frigidaire POA Valve ink date Stamp A/C -- 1 03 70
Frigidaire POA Valve ink date Stamp A/C -- 3 29 72
Frigidaire POA Valve ink date Stamp A/C -- 12 9 74
Diverter Valve Application Stamps
EXACT REPRODUCTION OF THE DIVERTER APPLICATION STAMP
I make these myself to exact font duplication of the originals.
**Valves are not included
Stamper - $20 each
Other Applications are available - just ask.
Diverter Valve Application Stamp - please select desired code:
GF - 1969 Small Block 307 327 350 (except Corvette)
GH - 1969 Big Block 396 427 454 V8 (except Corvette)
GJ - 1967-69 Corvette 427 (w/High Perf)
DC - Corvette Big Block 1968/ L36 & 1969 / L88
FG - 1967-68 Small Block V8 (Except Corvette)
FA - 1967-68 Big Block V8 Corvette 427 390 HP
DH -1967-68 Small Block Corvette and Z/28
DG - 1967-68 Big Block V8 (except Corvette)

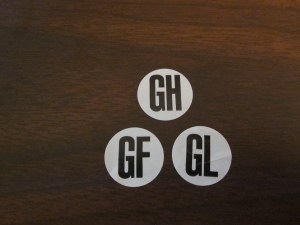

Diverter Valve Round Application labels - Exact Duplication of Originals
please select desired code:
$4.00 each
GF - 1970 + Small Block V8 (sticky tag)
GH - 1970 + Big Block V8 (sticky tag)
GL - 1970 + SB Corvette V8 (sticky tag)
GJ - 1970 + BB Corvette V8 (sticky tag)
Special Request stamper- (Send code and application, with your payment)
Special Request Label- (Send code and application, with your payment)
Other applications are available - just ask.
Alternator Inspection Stamp
$11 each other application codes are available- Just ask

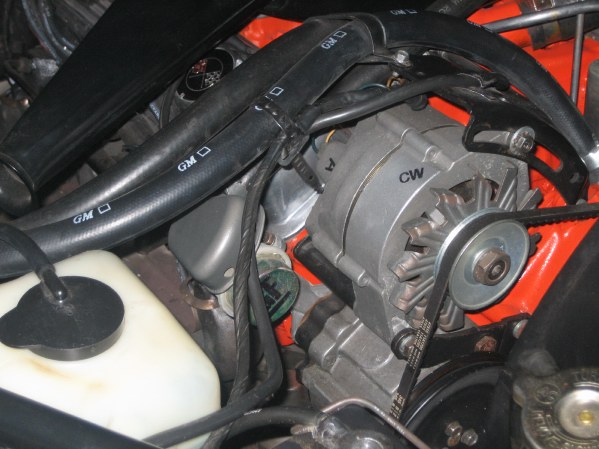

Every alternator used the "A" or "H" stamp, as well as an ADDITIONAL application code too.

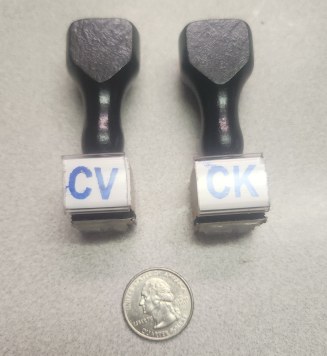

Alternator Application Stamp - please select desired code:
See below for some typical alternator part numbers
A - All Applications used this 1966 - 1975
H - All Applications used this 1966 - 1975
CZ - High Horsepower = 302 396 454
CW - Low Horsepower = 350, 396, 454
YG - 71-74 Camaro Chevelle HiPerf
CB - 1967-1968 Low HP = 396 350 327
CK - 68 High Horspower = 302 396 427
CH - 1967-1968 Low HP with a/c= 396 350 327 (available March 15th)
CD - 327 350 396 with a/c
NP - Corvette applications w/42 amp
NR - 427-390 400 with 42 amp Corvette applications
NS - L88 L89 w/TI Corvette applications
CT - 1969 with 61 amp w/TI or a/c Corvette applications
CS - Various wth 42 amp applications
NF - 427 Corvette applications
RH - Corvette 71 LT-1 and 270HP - w/42 amp applications or 1972 61 amp w-a/c
NW - Corvette 350 390 400 HP - w/42 amp applications
XB - GTO/Pontiac Applications
XC - GTO/Pontiac with a/c Applications
DE - Oldsmobile 442 applications
AM - Oldsmobile 1969 442 applications
LF - Oldsmobile 74 75 76 77 78 442 applications
NT - Corvette applications w-a/c
NX - Corvette applications
RF -Corvette applications
RG - Corvette applications
EC - Chevelle 1972 applications
YM - Chevelle 1972 61 amp w-a/c
Special request- (Send code and application, with your payment)
Some Typical Chevrolet and Corvette Alternator numbers - with codes
1100693 37 amp CB
1100834 37 amp CW
1100814 37 amp CK
1100837 37 amp CZ
1102454 37 amp YG
1100900 42 amp NW
1100901 42 amp NX
1100950 42 amp RF
1100543 42 amp RG
1100544 61 amp RH
1100859 42 amp NP
1100833 42 amp CV
1100881 42 amp NR
1100696 42 amp CS
1100750 61 amp CD
1100796 61 amp CH
1100825 61 amp CT
1100843 61 amp NF
1100882 61 amp NS
1100884 61 amp NT
1102440 37 amp EC

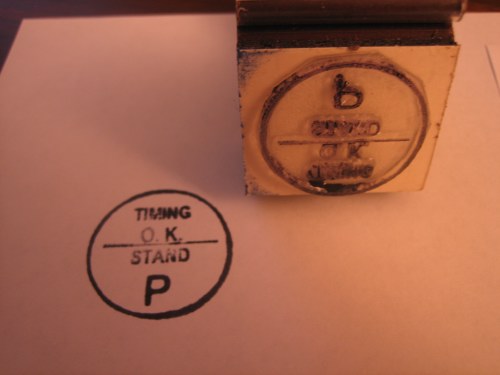

Pontiac / Olds Valve Cover OK Timing Stamp
$20 each
Pontiac / Oldsmobile- Timing OK P Stamp.
Pontiac / Oldsmobile- Timing OK D Stamp.

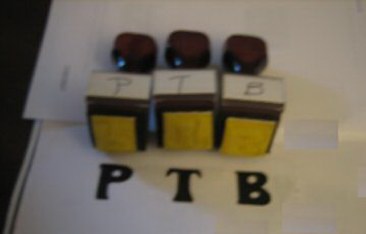

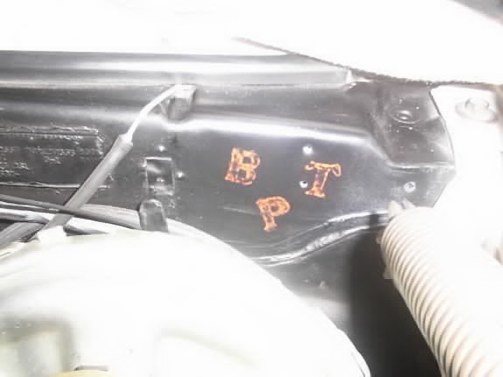

67 68 69 Camaro P T B Inspection Stamps
$34 per set

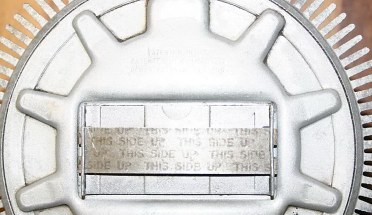

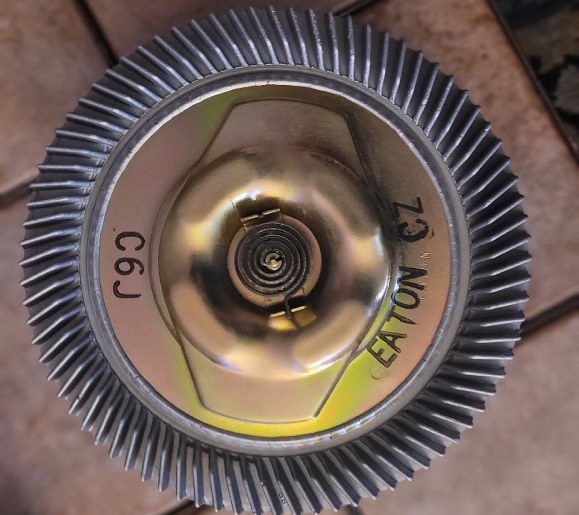

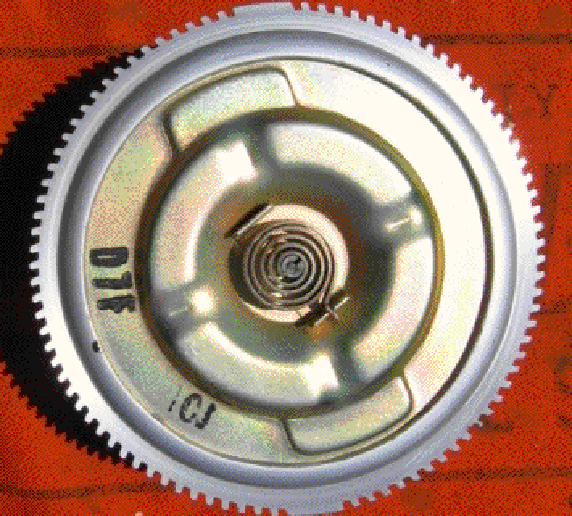

Fan Clutch Logo Stamps
$23 each - clutch not included

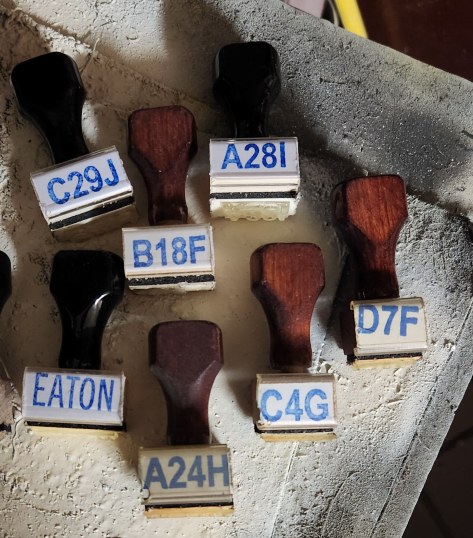

Eaton Logo Stamps
$15.00 each
Early Eaton Stamp - curved

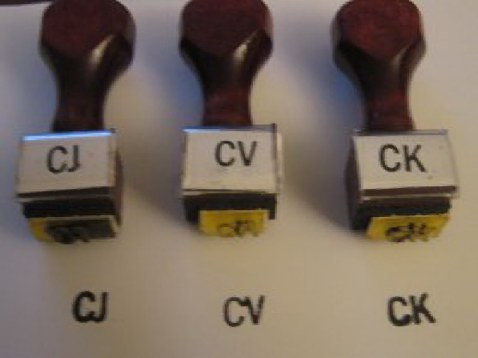

Clutch Application Code Stamp
$11.00 each
PF - GTO Fan Clutch Stamp
Special request- (Send code and application, with your payment)
Choke Cover Application Code Stamp
$11.00 each

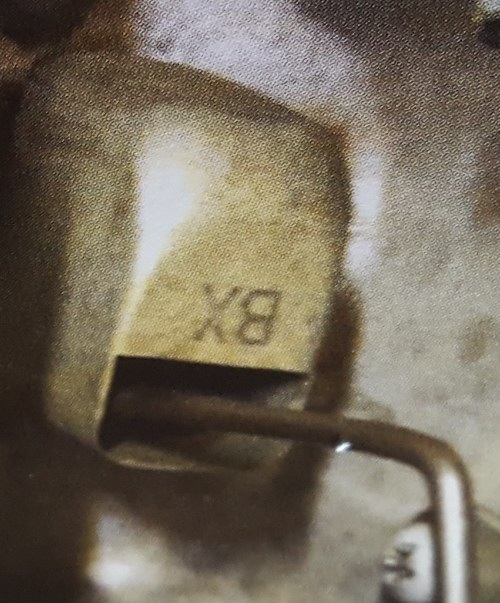

BX - Choke Stamp code 72 LT-1
CL- Choke Stamp code 71 LS-6
Special request- (Send code and application, with your payment)
Clutch Date Code Stamp - (Send required date code, with your payment)
I have some dates in stock - Custom dates will take 10-14 days
$15.00 each
Corvette Radiator Application Stamp
$16.00 each

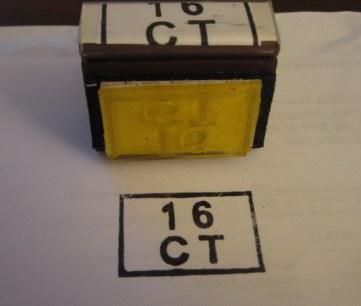

16 CT - Corvette Radiator application stamp

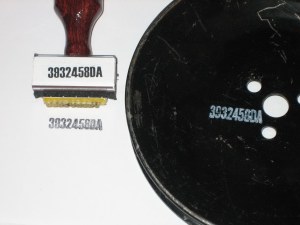

3932458DA - Smog pulley stamp
$12.95 each
Smog pulley stamp - Deep groove, 1972-1979
Fuel Line Application Stamps
$11.00 each - (hose not included)

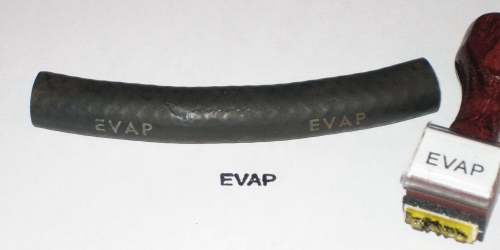

Evap stamp - GM fuel return lines, 1969 -1979
Gas Stamp - GM Fuel Lines
Fuel Lines Application Stamp
$15.00 each

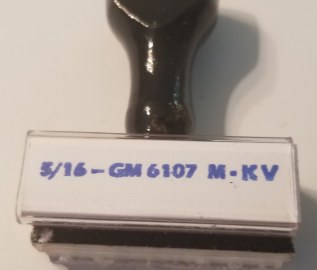

1971 and later Fuel Hose application stamp GM 5/16" 6107
$16.00 each

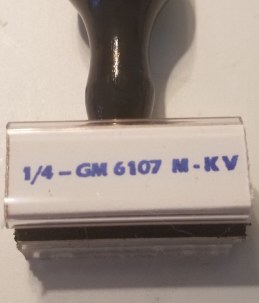

1971 and later Fuel Hose application stamp GM 1/4" 6107
PCV Hose Application Stamp
Stamp your own PVC hose with correct numbers.
$17.00 each

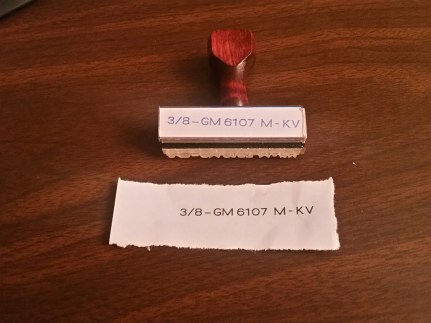

1971 and later PCV Hose application stamp GM 3/8" 6107
Bypass Hose Application Stamp
Stamp your own Bypass hose with correct Chevrolet numbers.
$16.00 each
Bypass Hose application stamp 9794094 - 62-68 Small Block

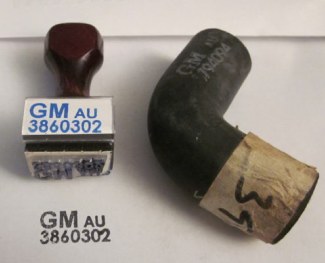

Bypass Hose application stamp 3860302 - 65-74 Big Block

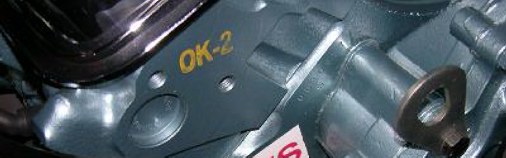

Pontiac - OK Engine Block Stamps
$15.00 each
Holley Carburetor Application stamps
$20.00 each
67 68 69 70 Camaro 4053 HOLLEY
69 COPO Camaro 4346 HOLLEY
67 68 69 Corvette 3659 TRI-POWER HOLLEY
67 68 69 Corvette 3660 TRI-POWER HOLLEY
67 68 69 Corvette 4055 TRI-POWER HOLLEY
67 Corvette 3418 L-88 HOLLEY
71 Corvette 4083 LS-6 HOLLEY
69 Corvette 4056 TRI-POWER HOLLEY W/automatic
Other numbers are available - Just Ask.
